Pen Plotter A

Working

Two steppers and a geared pen lift that draw on a 76 mm post-it pad, printed on a Bambu P1S and driven by an ESP32.

Pen Plotter A

Watch it draw

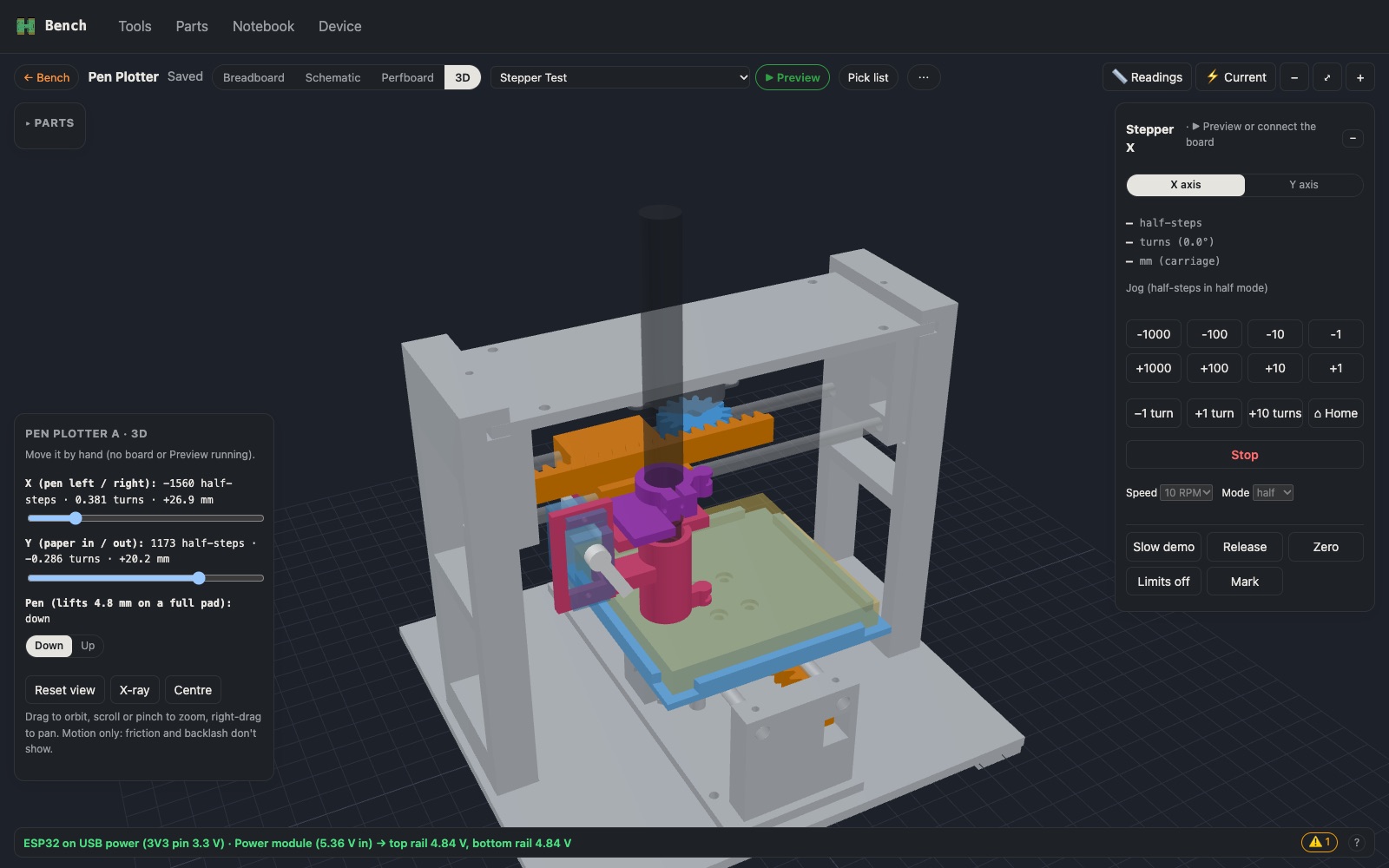

The 3D model of the plotter, replaying its own G-code. Drag to look around.

Pen Plotter A in Bench's 3D view

What it is

A small pen plotter. The pen moves left and right on the X axis, and the pad of paper moves in and out on the Y axis. Everything except the motors, needles, servo and screws is printed on a Bambu P1S.

Version A reuses the test axis from the stepper work: turned upside down on two legs for X, with a second test axis lying front to back underneath for Y.

The geared pen lift

The pen lift took three designs. The first clamped a collar on the pen and lifted it with the servo horn, but the horn pushed 15 mm to the side, so the pen spun in its tube. The second put the pen in a sled on a dovetail with a rubber band pulling it down, and it stuck. The one that works uses a rack and pinion, like the X and Y axes:

  • A pinion on the servo drives a rack on the sled, so the lift is driven both ways. Nothing depends on a band or a slider's friction.
  • The pen isn't clamped. It rests on the paper by its own weight (about 10 g), so it follows the pad down as the sheets get used.
  • The sled lifts the pen by its shoulder, where the Sharpie steps up from the front to the body, so it pushes all round and nothing twists.

The sled travels 15 mm. The pen lifts to 5 mm above a full pad, at any pad level, and a "Change paper" position raises it about 5.4 mm higher.

The Bench panel and the screen

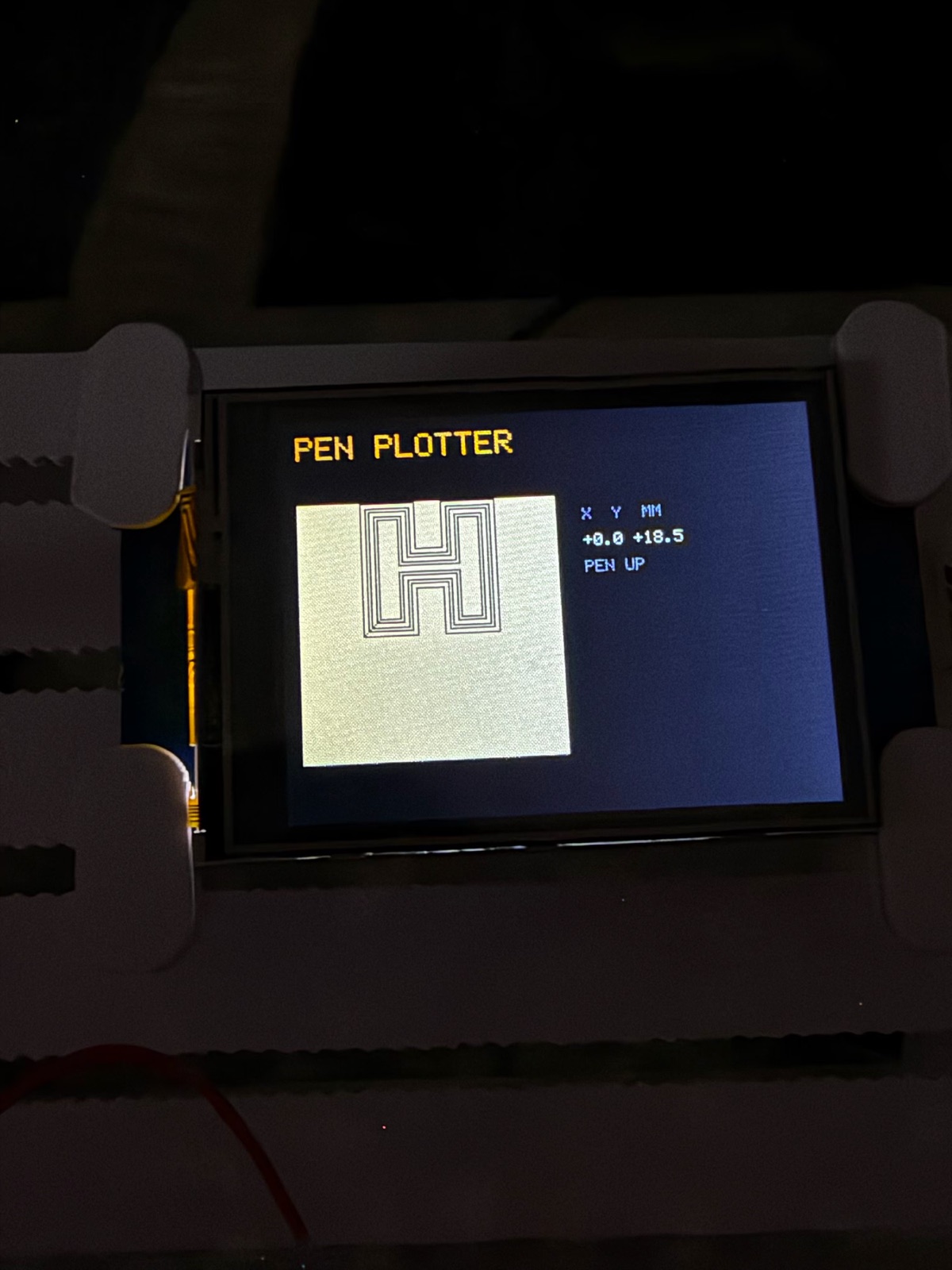

Plotter has its own panel in Bench: live position in mm, arrows that move the pen 0.1, 1 or 10 mm, Home and Zero, pen up and down, the test drawings and a speed setting, Change paper, and Stop. A redesigned Nextion screen shows the HYPNOCHIP H, a state badge (READY, DRAWING, PAPER, PARKED or STOPPED), the pad with markers that follow the pen, and the position, pen and job with a progress bar. After a job it reports what it did: its latest, the 8-bit cat, shows "DONE: G-CODE · 539 MM DRAWN" in 119 lines of G-code.

First plot

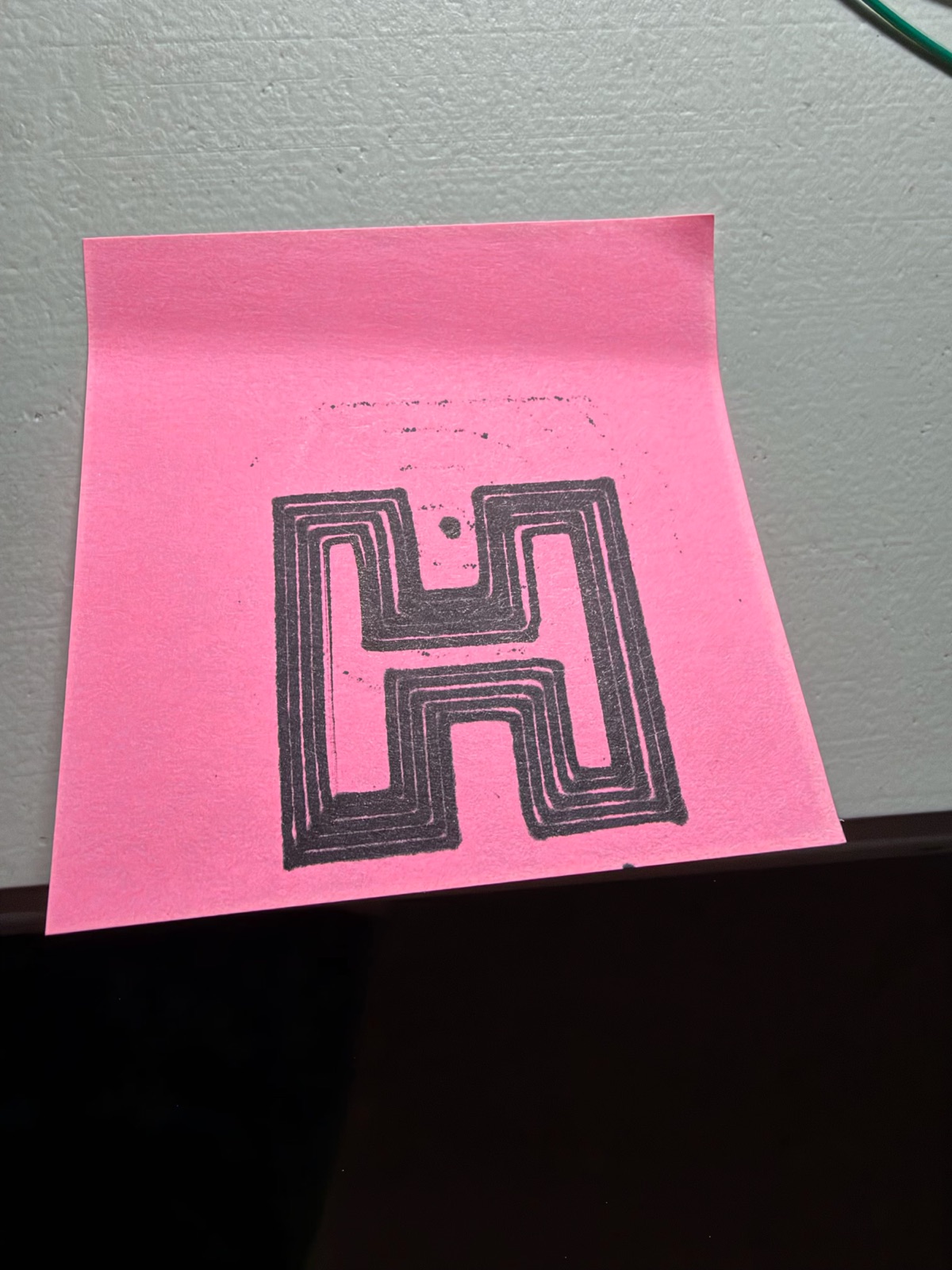

Its first picture was a "hypnotic H" for HYPNOCHIP: the H's outline in five rings 1.3 mm apart, drawn as one continuous line. It's 40 × 40 mm, about 983 mm of line, and takes roughly 100 seconds. The first plot also showed backlash on X, about 1.5 mm of ink bleed from a Fine Point Sharpie, and a pen that touched down when it shouldn't. The geared lift was built to fix the last one.

You can watch it draw in 3D above, and the whole build, including the broken first frame and the three pen lifts, is in the notebook.

Pen Plotter A photo 1
Pen Plotter A photo 2
Pen Plotter A photo 3
Pen Plotter A photo 4
Pen Plotter A photo 5
Pen Plotter A photo 6
Pen Plotter A photo 7
